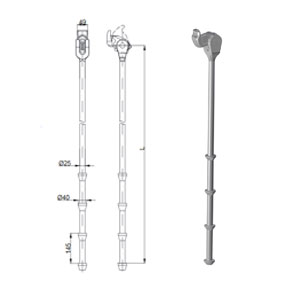

| Reference: | LB-44(2400) |
| Description: | KNOB LASHING BAR |
| Weight [kg]: | 12,0 |
| Material: | Forged high-tensile steel |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Standard lengths of 2,4m/2,5m/4,95m/5,045m are always available in stock. Other lengths upon request. Lashing bars are used together with turnbuckles for securing container stacks on the deck. |
Lashing Bars And Turnbuckles
| Reference: | LB-44-V(1660) |
| Description: | VERTICAL KNOB LASHING BAR |
| Weight [kg]: | 10,0 |
| Material: | Forged high-tensile steel |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Standard lengths of 1,66m/4,48m are always available in stock. Other lengths upon request. Lashing bars are used together with turnbuckles for securing container stacks on the deck. |

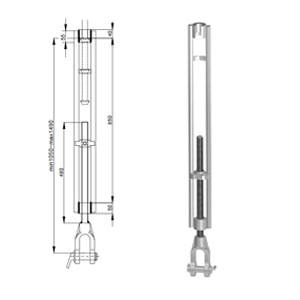

| Reference: | ST-4508 |
| Description: | KNOB/JAW TURNBUCKLE |
| Weight [kg]: | 13.4 |
| Material: | High tension steel |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Other lengths upon request.To tighten knot-type lashing bars LB-44. |

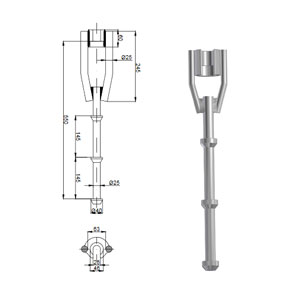

| Reference: | LB-47(550) |
| Description: | EXTENSION ROD |
| Weight [kg]: | 4,95 |
| Material: | Forged high-tensile steel |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Extension rod to be used with lashing bars LB-44.Standard lengths of 0,55m/1,23m are always available in stock. Other lengths upon request. |
