Lifting Equipment

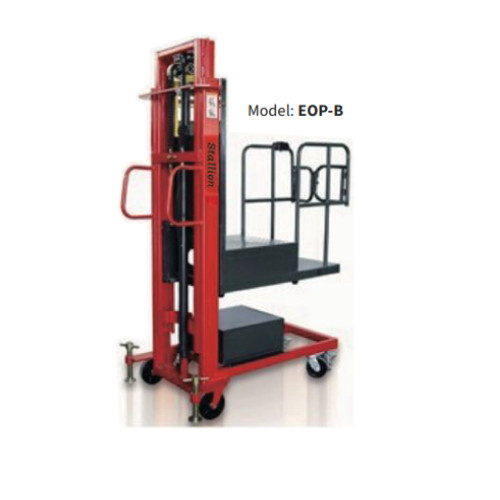

Semi-Electric Order Picker
Rated load capacity: 300kg; Max lift height: 3500mm, usually used in warehouse, library, supermarket rack etc;
The secure brake and bolt protective device, to ensure the safe operation
Our range of Semi-automatic High Level Order Picker is fabricated by a team do dexterous professionals using the finest grade factor inputs and latest technology in compliance with the international standards.
This product is broadly accepted by our clients due to their superior finish durability, high load bearing capacity and longer service life without any hassies. Offered in various technical specifications, this range of order picker is available at the most reasonable prices.
| ITEM | UNIT | EOP-B24 | EOP-B30 |
|---|---|---|---|
| DRIVE TYPE | HAND | HAND | |
| OPERATION TYPE | STANDING | STANDING | |
| LOAD CAPACITY | kg | 300 | 300 |
| MAX LIFTING HEIGHT | mm | 2400 | 3000 |
| HEIGHT·MAST LOWERED | mm | 1690 | 1990 |
| MIN.HEIGHT-PLATFORM | mm | 540 | 540 |
| MIN.HEIGHT-STAND PLATFORM | mm | 345 | |
| OVERALL LENGTH | mm | 1520 | |
| OVERALL WIDTH | mm | 890 | |
| WHEEL BASE | mm | 1025 | |
| BODY WIDTH | mm | 600 | |
| FRONT WHEEL | mm | Φ150X50 | |
| REAR WHEEL | mm | Φ180X50 | |
| TURNING RADIUS | mm | 1380 | |
| LOAD PLATFORM SIZE | mm | 600X600 | |
| STAND PLATFORM SIZE | mm | 450X600 | |
| LIFTING SPEED | mm/s | 85 | |
| LIFT MOTOR | kw | 1.5 | |
| BATTERY | V/Ah | 12/120 | |
