Lifting Equipment

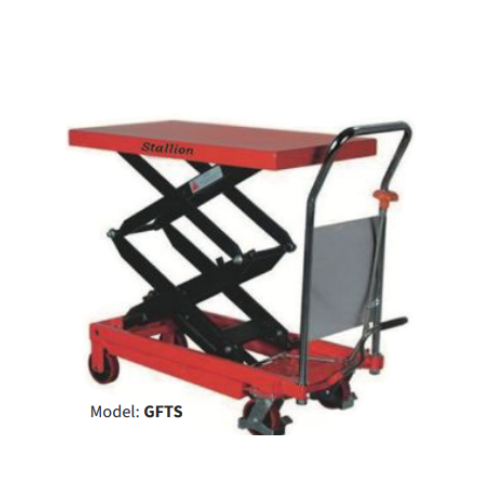

Scissor Lift Table
1 year warranty.
Easy action foot operated hydraulic lift for raising table top to desired level.
Hand operated table descent control.
Regenerative braking function to reduce the operation cost.
Valuable material handling equipment for use as a feeding table on assembly line.
| ITEM | UNIT | GTF | GTFB | GTFS |
|---|---|---|---|---|
| CAPACITY | KG | 300 / 500 | 750 / 1000 | 350 / 680 |
| MAX.LIFTING HEIGHT | MM | 900 | 1000 | 1300 |
| MIN.TABLE HEIGHT | MM | 290 | 390 | 360 |
| TABLE SIZE | MM | 815X510X50 | 1000X510X55 | 910X510X50 |
| OVERALL LENGTH | MM | 885 | 1060 | 980 |
| WHEEL TYPE | PU | |||
| WHEEL SIZE | MM | Φ 125X50 | Φ 150X50 | Φ 125X50 |
| PEDAL CYCLES TO MAX HEIGHT | ⩽40 | ⩽55 | ⩽60 | |
| SERVICE WEIGHT | KG | 75 / 85 | 115 | 105 / 185 |
| QTY./20’CONTAINER | PCS | 120 | 115 | 110 |
| CARTON SIZE | MM | 960X530X420 | 1190X630X460 | 1010X530X390 |
