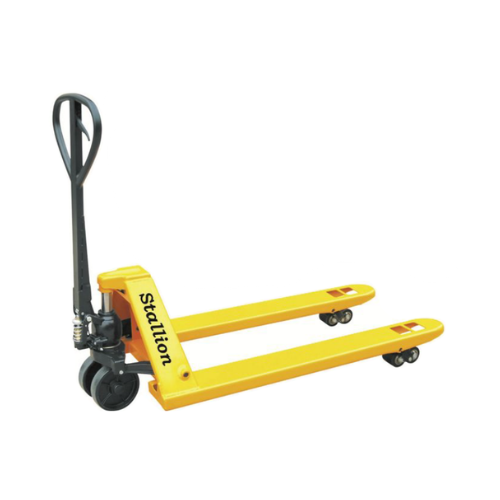

HAND PALLET TRUCK – HPW
High reliability and long service life of 5 years.
Double lifting speed when loads under 600 kg, which turns back to regular speed when above it.
The lifting system is equipped with overloading protection valve to ensure the safe operation.
The utilized structural design guarantees the convenience of assembling and disassembling.
High - weight fork frame, made from high rigidity steel plate.
Compact appearance, innovative separated rock arm, ensure the whole truck evenly pressed.
There is a finger hole in the connection of handle and pump, which os easy to assembly.
Conform to EN 1757-2.
| ITEM | UNIT | HPW |
|---|---|---|
| CAPACITY | KG | 5000 |
| OVERALL FORK WIDTH | MM | 550/685 |
| OVERALL FORK LENGTH | MM | 1150/1220 |
| LOWERED FORK HEIGHT | MM | 77 |
| MAX.FORK HEIGHT | MM | 195 |
| STEERING WHEEL SIZE | MM | Φ 180 |
| LOAD ROLLER SIZE TANDEM WHEELS | MM | Φ 75X80 |
| TURNING RADIUS | MM | 1370 |
| SERVICE WEIGHT | KG | 103 |
| WHEEL TYPE | NYLON |
