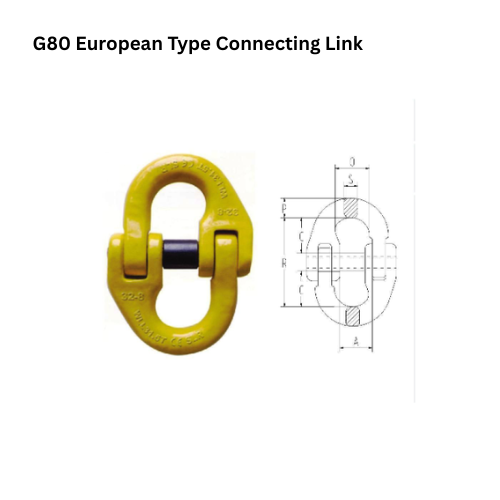

G80 EUROPEAN TYPE CONNECTING LINK
| Size | W.L.L. | A | C | O | R | P | S | Weight |
|---|---|---|---|---|---|---|---|---|
| mm | T | mm | mm | mm | mm | mm | mm | kg/pc |
| 6 | 1.12 | 16 | 18 | 16.5 | 43 | 7.2 | 6.8 | 0.07 |
| 7/8 | 2 | 17.8 | 20 | 20.5 | 50.5 | 10.2 | 9 | 0.10 |
| 8 | 2 | 19 | 25.5 | 23.5 | 62 | 11.5 | 10 | 0.25 |
| 10 | 3.15 | 23.8 | 30 | 27.5 | 72 | 12.6 | 12.6 | 0.35 |
| 13 | 5.3 | 28 | 36 | 33.3 | 87.3 | 19 | 16.7 | 0.68 |
| 16 | 8 | 34.3 | 40.5 | 39.5 | 103 | 20.6 | 20.6 | 1.10 |
| 20 | 12.5 | 44 | 48 | 47 | 116 | 23 | 23 | 1.70 |
| 22 | 15 | 49 | 51 | 55 | 133 | 26.5 | 26.5 | 2.20 |
| 28 | 21.2 | 60 | 60 | 66 | 148 | 31.5 | 31.5 | 4.20 |
| 32 | 31.5 | 80 | 77 | 86 | 190 | 40 | 32 | 7.19 |
G80 WEBBING COUPLING LINK
| Size | W.L.L. | A | B | C | D | E | F | G | H | I | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | T | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/pc |
| 7/8 | 2 | 40 | 68 | 24 | 20 | 24 | 14 | 17 | 9 | 10 | 0.28 |
| 10 | 3.15 | 40 | 81 | 35 | 30 | 30 | 14 | 23 | 11 | 13 | 0.47 |
| 13 | 5.3 | 55 | 104 | 48 | 36 | 36 | 18 | 28 | 16 | 16 | 0.99 |
| 16 | 8 | 67 | 115 | 57 | 40 | 44 | 24 | 36 | 21 | 21 | 2.00 |
| 20 | 12.5 | 82 | 134 | 65 | 50 | 52 | 29 | 40 | 23 | 23 | 2.30 |
| 22 | 15 | 125 | 177 | 100 | 58 | 68 | 39 | 43 | 27 | 27 | 6.30 |
G80 U.S.TYPE CONNECTING LINK
| Size | W.L.L. | M.B.L. | A | L | K | H | Weight |
|---|---|---|---|---|---|---|---|
| inch | lbs | lbs | mm | mm | mm | mm | lbs/pc |
| 1/4 | 3500 | 14000 | 16.5 | 67 | 51 | 8 | 0.286 |
| 5/16 | 4500 | 18000 | 17 | 78.5 | 58.5 | 10 | 0.320 |
| 3/8 | 7100 | 28400 | 22 | 87.6 | 63.6 | 12 | 0.730 |
| 1/2 | 12000 | 48000 | 28.5 | 115.5 | 85.6 | 15 | 1.670 |
| 5/8 | 18100 | 72400 | 33 | 143 | 106 | 18.5 | 2.860 |
| 3/4 | 28300 | 113200 | 41 | 162 | 116 | 23 | 5.000 |
| 7/8 | 34200 | 136800 | 50.5 | 188.5 | 136.5 | 26 | 7.500 |
| 1 | 47700 | 190800 | 57 | 214.5 | 152.5 | 31 | 11.030 |
| 1-1/4 | 72300 | 289200 | 65 | 265 | 188.7 | 38 | 20.380 |
