Rigging Hardware

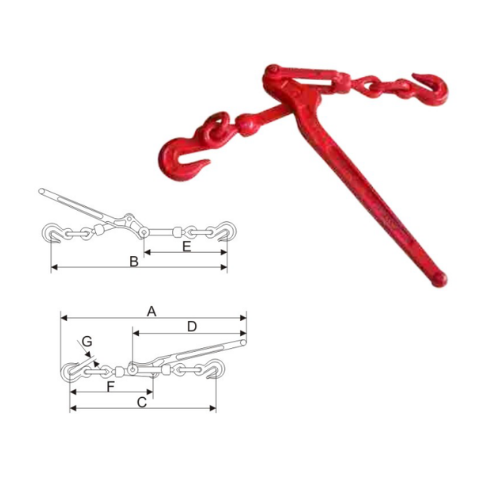

Lever Type Load Binder
- Safety, durability designed for all heavy duty transport use.
- Drop forged steel, high strength.
- Free 360 degree swivel hooks for easier handling.
- Heat-treated for extra strength.
- Each binder individually proof tested.
- Drop forged or casting is available as requirement.
| Chain Size (in) | W.L.L.(lbs) | Proof Load(lbs) | Min. Ultimate Load(lbs) | Weight (lbs) | Handle Length (in) | Dimension (in) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | E1 | F | F1 | G | ||||||
| 1/4-5/16 | 2600 | 5200 | 7800 | 3.52 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 |
| 5/16-3/8 | 5400 | 10800 | 19000 | 10.50 | 13.42 | 13.92 | 1.30 | 2.60 | 22.64 | 30.64 | 25.24 | 33.24 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 12..90 | 13.92 | 13.92 | 1.30 | 2.60 | 24.13 | 32.13 | 27.04 | 35.04 | 0.59 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 13.92 | 13.92 | 1.30 | 2.60 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 |
