| Reference: | BF-16L or R |
| Description: | TRANSVERSAL DOVETAIL TWISTLOCK 45° |
| Weight [kg]: | 6,8 |
| Material: | Cast steel housing + Forged steel cone |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | 420 |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Twistlocks for securing containers on the deck.To be fitted in dovetail sockets of 45° |
Stacking Cones and Twist locks
| Reference: | BF-11-55L or R |
| Description: | LONGITUDINAL DOVETAIL TWISTLOCK 55° |
| Weight [kg]: | 7,2 |
| Material: | Cast steel housing + Forged steel cone |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | 420 |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Twistlocks for securing containers on the deck.To be fitted in dovetail sockets of 55° |
| Reference: | BF-16-55L or R |
| Description: | TRANSVERSAL DOVETAIL TWISTLOCK 55° |
| Weight [kg]: | 7,6 |
| Material: | Cast steel housing + Forged steel cone |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | 420 |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Twistlocks for securing containers on the deck.To be fitted in dovetail sockets of 55°. |
| Reference: | BF-11L |
| Description: | DOVETAIL LINE LOAD TWISTLOCK 45° |
| Weight [kg]: | 6,6 |
| Material: | Cast steel housing + Forged steel cone |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | 420 |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Twistlocks for securing containers on the deck. To be fitted in dovetail sockets of 45°.Only for line load stowage. |
| Reference: | IF-51BS-L or R |
| Description: | BIG SURFACE TWISTLOCK |
| Weight [kg]: | 5,3 |
| Material: | Cast steel housing + Forged steel cones |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | 420 |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Standard manual twistlocks with larger flangefor higher pressure forces. |
| Reference: | IF-51-L or R |
| Description: | STANDARD INTERMEDIATE TWISTLOCK |
| Weight [kg]: | 4,8 |
| Material: | Cast steel housing + Forged steel cones |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | 420 |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Standard manual twistlock. |
| Reference: | IF-51BST-L or R |
| Description: | BIG SURFACE TWISTLOCK |
| Weight [kg]: | 6,2 |
| Material: | Cast steel housing + Forged steel cones |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | 420 |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Standard manual twistlocks with larger flange for higher pressure forces. |

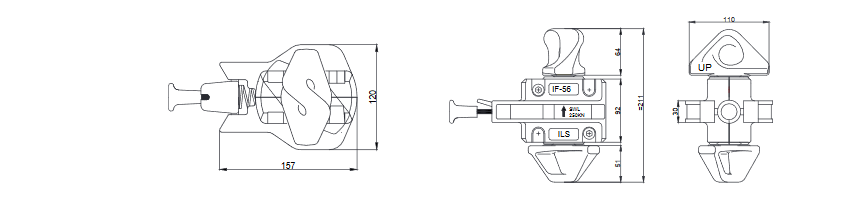

| Reference: | IF-56 |
| Description: | SEMI-AUTOMATIC TWISTLOCK |
| Weight [kg]: | 5,4 |
| Material: | Cast steel housing + Forged steel cones + Wire handle: stainless steel |
| Breaking load Tension [kN]: | 500 |
| Breaking load Shear [kN]: | 420 |
| Finish: | Shot blasted + Hot dip galvanized |
| Remarks: | Dual function semi-automatic twistlock.OSHA compliant. |
