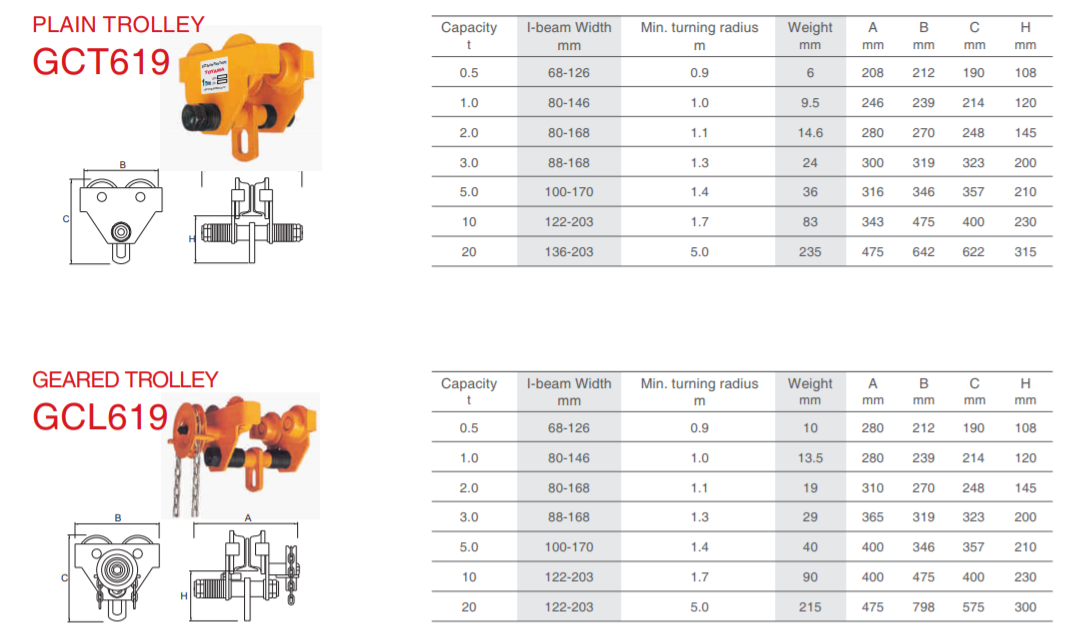

PLAIN TROLLEY
GCT619
| Capacity t | I-beam Width mm | Min. turning radius m | Weight mm | A mm | B mm | C mm | H mm |
|---|---|---|---|---|---|---|---|
| 0.5 | 68-126 | 0.9 | 6 | 208 | 212 | 190 | 108 |
| 1.0 | 80-146 | 1.0 | 9.5 | 246 | 239 | 214 | 120 |
| 2.0 | 80-168 | 1.1 | 14.6 | 280 | 270 | 248 | 145 |
| 3.0 | 88-168 | 1.3 | 24 | 300 | 319 | 323 | 200 |
| 5.0 | 100-170 | 1.4 | 36 | 316 | 346 | 357 | 210 |
| 10 | 122-203 | 1.7 | 83 | 343 | 475 | 400 | 230 |
| 20 | 136-203 | 5.0 | 235 | 475 | 642 | 622 | 315 |
GEARED TROLLEY
GCL619
| Capacity t | I-beam Width mm | Min. turning radius m | Weight mm | A mm | B mm | C mm | H mm |
|---|---|---|---|---|---|---|---|
| 0.5 | 68-126 | 0.9 | 10 | 280 | 212 | 190 | 108 |
| 1.0 | 80-146 | 1.0 | 13.5 | 280 | 239 | 214 | 120 |
| 2.0 | 80-168 | 1.1 | 19 | 310 | 270 | 248 | 145 |
| 3.0 | 88-168 | 1.3 | 29 | 365 | 319 | 323 | 200 |
| 5.0 | 100-170 | 1.4 | 40 | 400 | 346 | 357 | 210 |
| 10 | 122-203 | 1.7 | 90 | 400 | 475 | 400 | 230 |
| 20 | 122-203 | 5.0 | 215 | 475 | 798 | 575 | 300 |

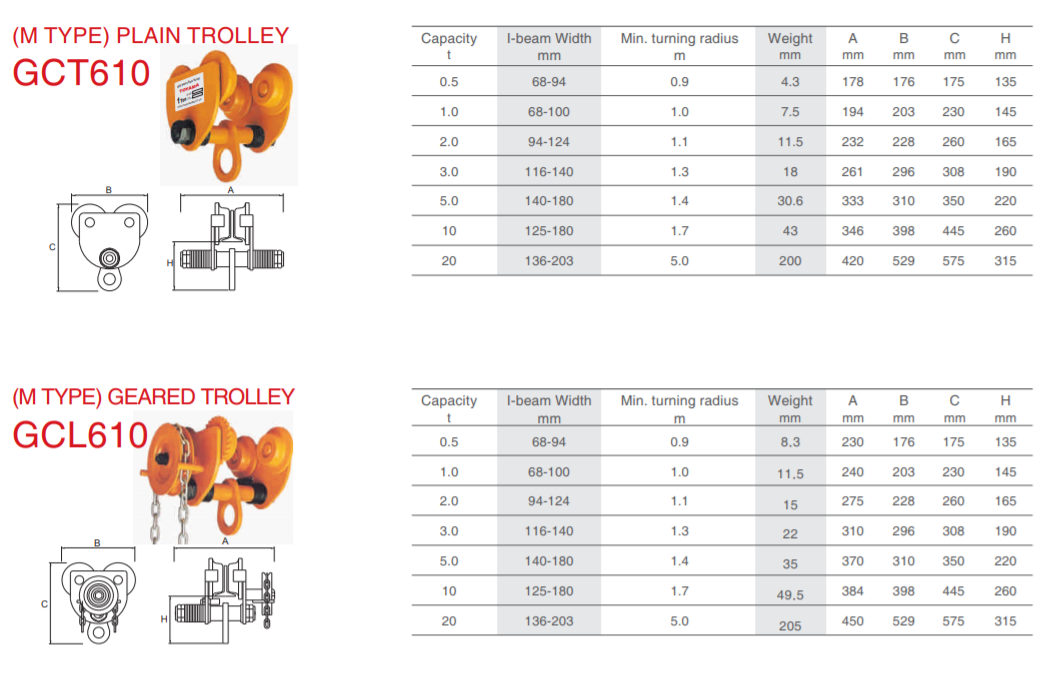

(M TYPE) PLAIN TROLLEY
GCT610
| Capacity t | I-beam Width mm | Min. turning radius m | Weight mm | A mm | B mm | C mm | H mm |
|---|---|---|---|---|---|---|---|
| 0.5 | 68-94 | 0.9 | 4.3 | 178 | 176 | 175 | 135 |
| 1.0 | 68-100 | 1.0 | 7.5 | 194 | 203 | 230 | 145 |
| 2.0 | 94-124 | 1.1 | 11.5 | 232 | 228 | 260 | 165 |
| 3.0 | 116-140 | 1.3 | 18 | 261 | 296 | 308 | 190 |
| 5.0 | 140-180 | 1.4 | 30.6 | 333 | 310 | 350 | 220 |
| 10 | 125-180 | 1.7 | 43 | 346 | 398 | 445 | 260 |
| 20 | 136-203 | 5.0 | 200 | 420 | 529 | 575 | 315 |
(M TYPE) GEARED TROLLEY
GCL610
| Capacity t | I-beam Width mm | Min. turning radius m | Weight mm | A mm | B mm | C mm | H mm |
|---|---|---|---|---|---|---|---|
| 0.5 | 68-94 | 0.9 | 8.3 | 230 | 176 | 175 | 135 |
| 1.0 | 68-100 | 1.0 | 11.5 | 240 | 203 | 230 | 145 |
| 2.0 | 94-124 | 1.1 | 15 | 275 | 228 | 260 | 165 |
| 3.0 | 116-140 | 1.3 | 22 | 310 | 296 | 308 | 190 |
| 5.0 | 140-180 | 1.4 | 35 | 370 | 310 | 350 | 220 |
| 10 | 125-180 | 1.7 | 49.5 | 384 | 398 | 445 | 260 |
| 20 | 136-203 | 5.0 | 205 | 450 | 529 | 575 | 315 |
