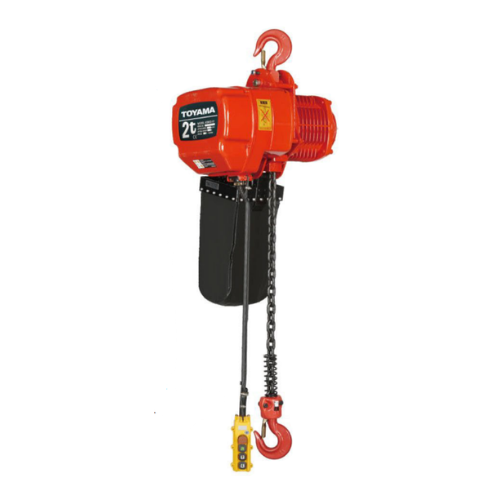

Electric Chain Hoist
Japan Tech.
Dual braking system ensure for more safe and reliable operation.
Compact design with light weight
Dual-geared driven system enable smoothly driven with low noise.
High-strength alloy steel components with special heat treatment, avoiding sudden break.
Dual Speed
Schneider electric parts
Over protection
FEC Chain & Thermal protection
Different power supply and frequency
| Model 型号 | Capacity 额定载荷 t | Standard lift 标准起升高度 m | Test load 试验载荷 kN | Motor Power(kw) 电机功率 Single/Dual 单速/双速 | No.of Chain 链条行数 | Dia of Chain 链条直径 mm | Lifting Speed (m/min) 起升速度 Single/Dual 单速/双速 | Net weight 净重 kg | Extra weight per meter of extra lift 起升高度增加1米增加的重量 kg |
|---|---|---|---|---|---|---|---|---|---|
| HHB-0.5AF | 0.5 | 3 | 6.25 | 0.75, 0.8/0.27 | 1 | 6.3 | 6.8, 6.9/2.3 | 47 | 0.81 |
| HHB-1.0AF | 1.0 | 3 | 12.5 | 1.5, 1.8/0.6 | 1 | 7.1 | 6.6, 6.9/2.3 | 61 | 1.1 |
| HHB-1.0BF | 1.0 | 3 | 12.5 | 0.75, 0.8/0.27 | 2 | 6.3 | 3.4, 3.5/1.2 | 52 | 1.62 |
| HHB-2.0AF | 2.0 | 3 | 25 | 3.0, 3.0/1.0 | 1 | 10 | 6.6, 6.8/2.3 | 115 | 2.3 |
| HHB-2.0BF | 2.0 | 3 | 25 | 1.5, 1.8/0.6 | 2 | 7.1 | 3.3, 3.3/1.1 | 73 | 2.2 |
| HHB-3.0AF | 3.0 | 3 | 37.5 | 3.0, 3.0/1.0 | 1 | 11.2 | 5.4, 5.4/1.8 | 122 | 2.8 |
| HHB-3.0BF | 3.0 | 3 | 37.5 | 3.0, 3.0/1.0 | 2 | 10 | 4.4, 4.5/1.5 | 131 | 4.7 |
| HHB-5.0F | 5.0 | 3 | 62.5 | 3.0, 3.0/1.0 | 2 | 11.2 | 2.8, 2.7/0.9 | 151 | 5.6 |
| HHB-7.5F | 7.5 | 3 | 94 | 3.0, 3.0/1.0 | 3 | 11.2 | 1.8, 1.8/0.6 | 266 | 8.4 |
| HHB-10F | 10 | 6 | 125 | 3.0, 3.0×2/1.0×2 | 4 | 11.2 | 2.7, 2.7/0.9 | 335 | 11.2 |
| HHB-15F | 15 | 6 | 187.5 | 3.0X2, 3.0×2/1.0×2 | 6 | 11.2 | 1.8, 1.8/0.6 | 451 | 17 |
| HHB-20F | 20 | 6 | 250 | 3.0X2, 3.0×2/1.0×2 | 8 | 11.2 | 1.4, 1.5/0.6 | 546 | 22 |
| HHB-25F | 25 | 6 | 312.5 | 3.0X2, 3.0×2/1.0×2 | 10 | 11.2 | 1.1, 1.2/0.4 | 624 | 28 |
| HHB-30F | 30 | 6 | 375 | 3.0X2, 3.0×2/1.0×2 | 12 | 11.2 | 0.9, 1.0/0.3 | 1143 | 31 |
| HHB-35F | 35 | 6 | 437.5 | 3.0X2, 3.0×2/1.0×2 | 16 | 11.2 | 0.7, 0.7/0.25 | 1385 | 44.8 |
